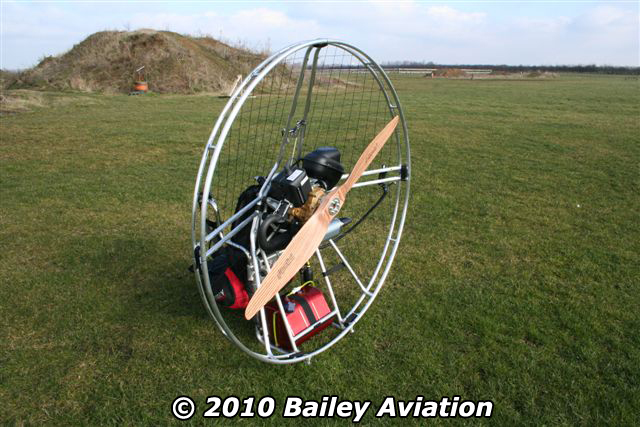

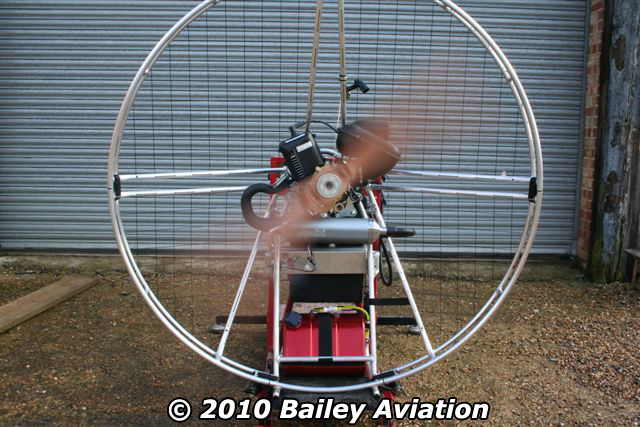

The new Bailey Thor is the product of 11 years in the PPG manufacturing business, during which time our machines have won countless National Championships, two European Championships and in 2009 the FAI World Championship
.

Our machines are also the mount of choice for many hardcore cross country pilots completing many epic un-supported long distance trips. Due to the Polini pedigree many PPG manufacturers are now offering the Thor engine in their chassis. We have worked hard on the design of our new Bailey-Thor chassis to incorporate many convenient features not offered by our competitors.

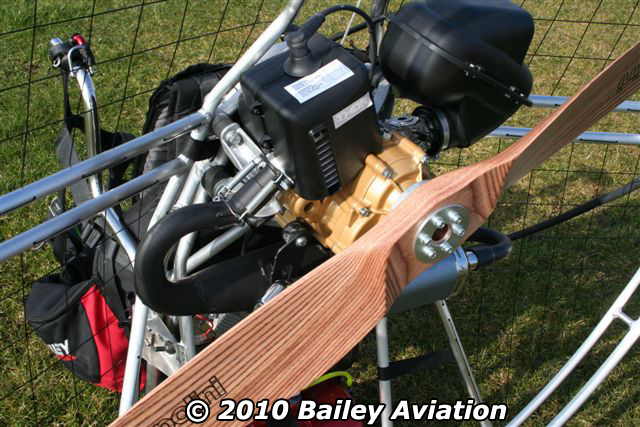

The Bailey Thor uses the fantastic new Polini 2 stroke engine, which we are mightily impressed with and will be our lightest and most inexpensive paramotor. The decision to re-introduce a 2 stroke machine was made based on the performance vs weight characteristics of the new engine

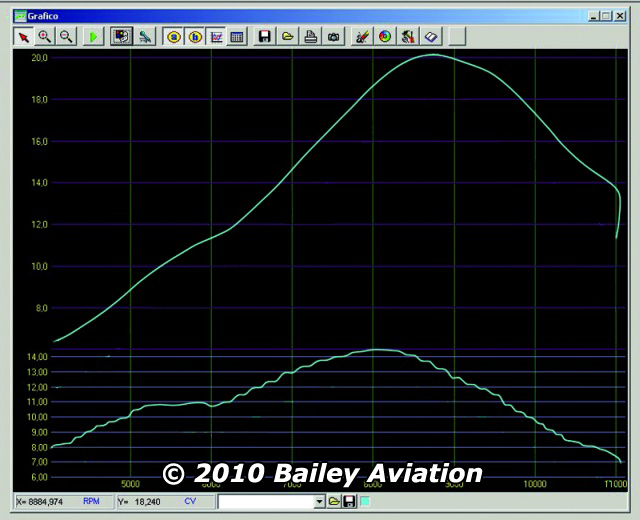

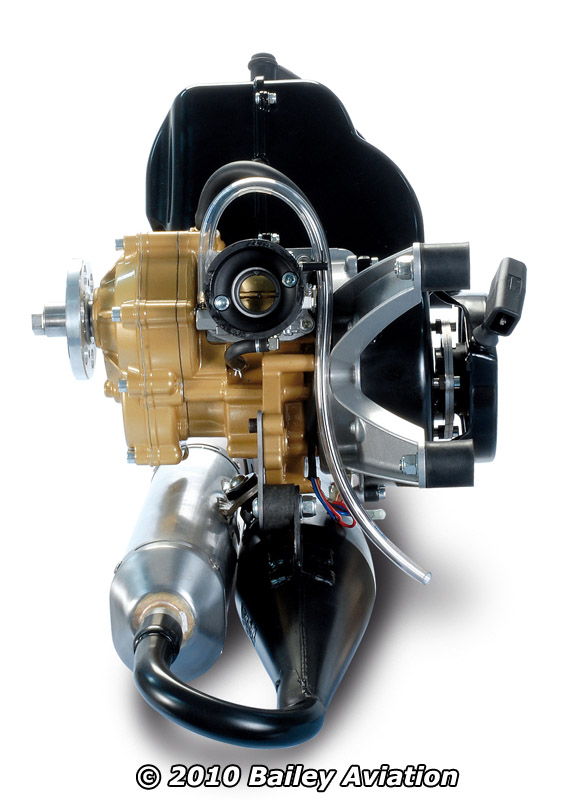

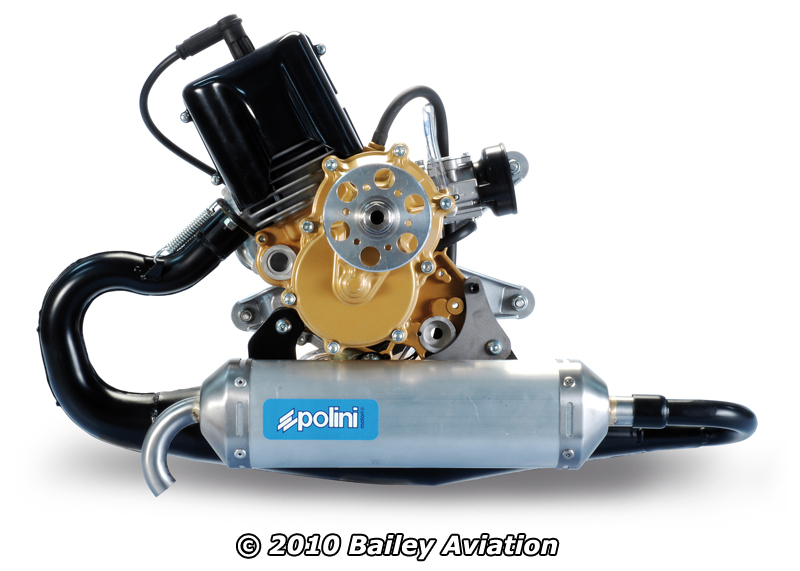

The Polini engine is in our view the best 2 stroke paramotor specific engine ever made, is very nicely engineered, produced by a highly reputable company, is lightweight and has a 20.5HP power output @ 8900RPM.

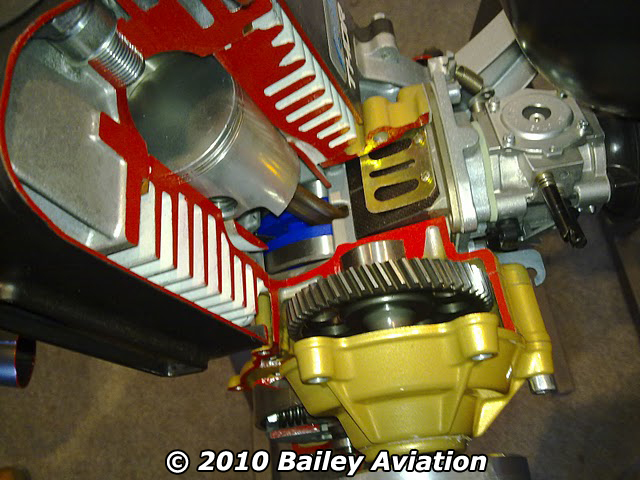

The engine features an aluminium cylinder with Gilnisil coating with a 12.5:1 compression ratio, Walbro Carburettor with moulded intake silencer (optional Dellorto carburettor), lightweight 3.43:1 reduction drive and a simple manual pull start re-coil system and centrifugal (oil bath) clutch assembly. The engine weighs 11.8Kg (minus exhaust), is incredibly compact and is fitted with a 2 blade 1.10mØ or 1.30mØ (composite) or 1.25mØ (wooden) Polini prop, giving approx. 64Kg of thrust (1.25m prop version). The complete Bailey Thor paramotor weighs only 27.3Kg (ready to run, minus fuel). We can offer an optional small 12V 4ah battery that is charged from the engine to run accessories (please enquire for details).

The Bailey Thor is available only with our alloy chassis in 1.10mØ or 1.30mØ size (the 1.25mØ wooden prop version uses the 1.30mØ chasis/cage) with either standard fit mid or low hang bars or extra cost Active Chassis. We have no immediate plans to produce the Thor with our titanium chassis. All Bailey Thor paramotors are equipped with our standard quick release propeller system as standard.

With the exception of the engine and propeller, the Thor uses the same quality components as our range of 4 stroke machines, lightweight double hoop safety cage, bespoke Sup'Air harness with carry pockets and attached speed bar pulleys, alloy 10 L fuel tank (15L tank optional on 1.25mØ/1.30mØ versions), choice of mid or low stainless steel hang bars, Sup'Air carabiners and World Championship winning build quality.

The Bailey Thor has some unique design features and was designed in collaboration with Mike & Alex at SaberAce Paramotors.

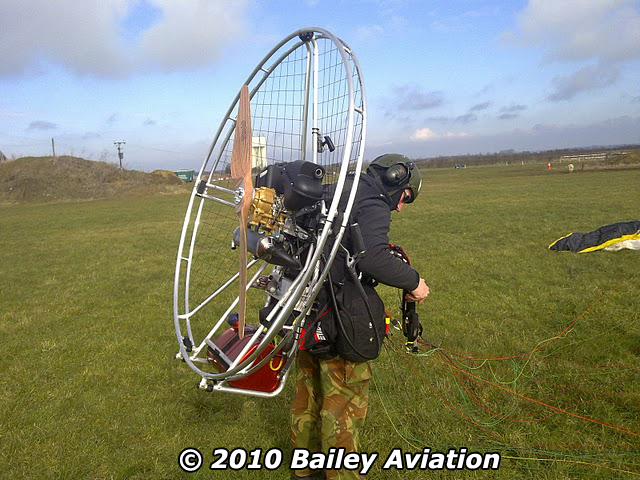

Please check out the Gallery tab for more pictures of the Bailey Thor Paramotor.

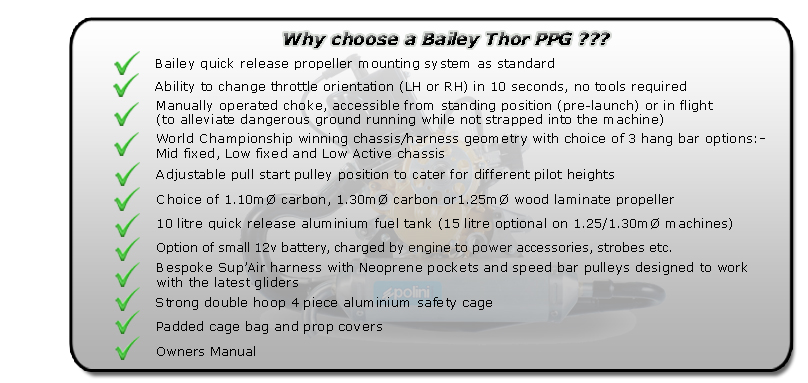

All Bailey Thor paramotors are supplied with the following standard features:-

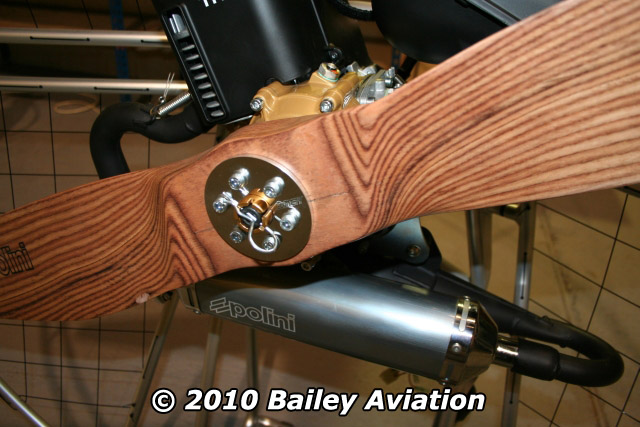

  • 1.10m composite or 1.30m composite or 1.25m Wooden 2 blade propeller

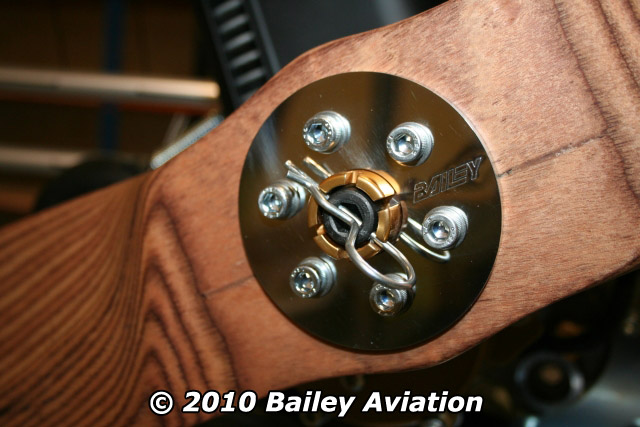

  • Quick release propeller mounting system as standard
  • 4 piece double hoop safety cage (alloy only)
  • Sup'Air bespoke harness with carry pockets and attached speed bar pulleys
  • 10 litre aluminium fuel tank with dry break coupling and sight gauge
  • Stainless steel hang bars (mid or low types available)
  • Padded Bailey Aviation propeller covers
  • Padded Bailey Aviation cage quarter bag
  • Operation and Maintenance manual

The Bailey 'Thor' Paramotor is available with the following options:-
  • Mid or Low hang bar systems
  • Left or right hand throttle
  • Optional 15 litre fuel tank (1.25m/1.30m prop version only +£20.00 incl VAT)
  • Optional new Active Chassis system (£160.00 incl VAT)
  • Optional small battery, that is charged by engine to run accessories (80W @5500RPM - £40.00 incl VAT)

2010 Paramotor Range Prices


1
1.10mØ carbon propeller
Manual start
1
1.25mØ wooden propeller
Manual start
1
1.30mØ carbon propeller
Manual start
1
£4350.00
£4350.00
£4350.00

All prices include UK VAT @ 17.5%

Extra Cost Options:-
*Please add £160 incl VAT to the above prices for our new 'Active Chassis' system.
**Small 12v 4ah battery for running accessories - £40 incl VAT

Please Click here for our full 2010 Price list.

Click on the images to enlarge









TITANIUM CHAS






1
1.10mØ composite propeller
Manual start
1
1.25mØ wooden propeller or
1.30mØ composite propeller
Manual start
Engine Manufacturer
Polini (Italy)
Polini (Italy)
Type / Power Output
110cc 2 Stroke
20.5HP@8900RPM
110cc 2 Stroke
20.5HP@8900RPM
Carburettor
Walbro with moulded intake silencer
Dellorto carburettor optional
Walbro with moulded intake silencer
Dellorto carburettor optional
Fuel Mixture
Lead free petrol with 2% Synthetic oil
Lead free petrol with 2% Synthetic oil
Static Thrust
TBA
64Kg (141lbs)
Engine Weight - Manual Start
11.8Kg
11.8Kg
Paramotor Dry Weight
Alloy Chassis & Cage
TBA
27.3Kg
Fuel Consumption
TBA
2.7 to 3.0 Litres/Hour
Range
TBA
3.0+Hours
Fuel Tank Capacity
10 Litres
10 Litres
Pilot Weight Range
TBA
Up to 110Kg
Noise Level
TBA
TBA
