Click to view our range of
Ozone Wings




The Bailey Egg project is to design and develop a kit of parts to convert the Honda GX200 industrial engine into a viable low cost  PPG engine.

Much of the extensive R+D work from our own engine range has been carried over onto this project.

There are 4 separate kits of parts, each kit can be used alone or in conjunction with other component kits.

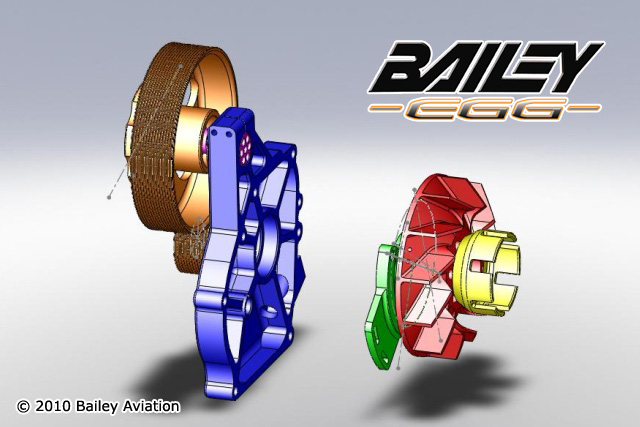

EGG CAD drawings

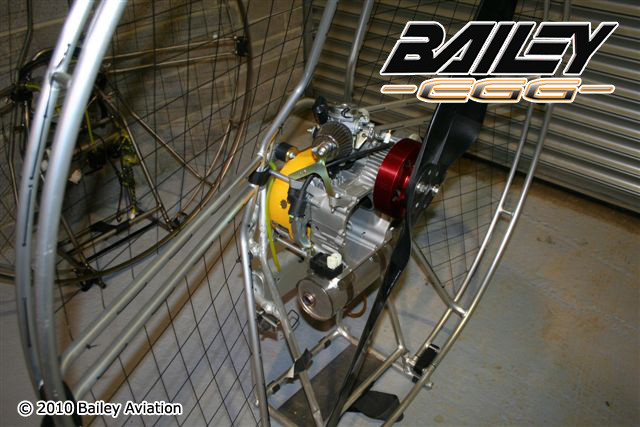

EGG Engine on chassis

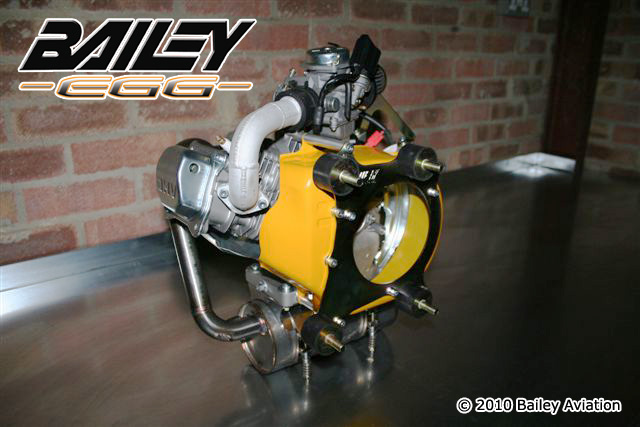

EGG Engine

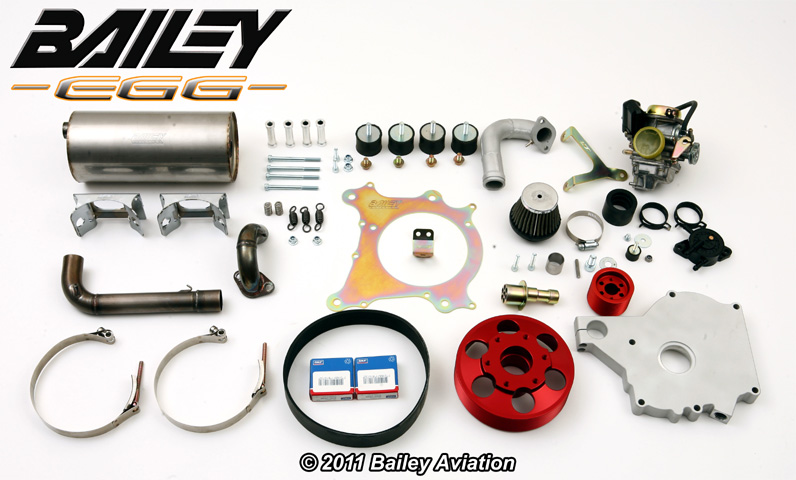

All EGG kits




Click on the images to enlarge



Please also visit the Yahoo Groups EGG Forum for the latest information and discussions.

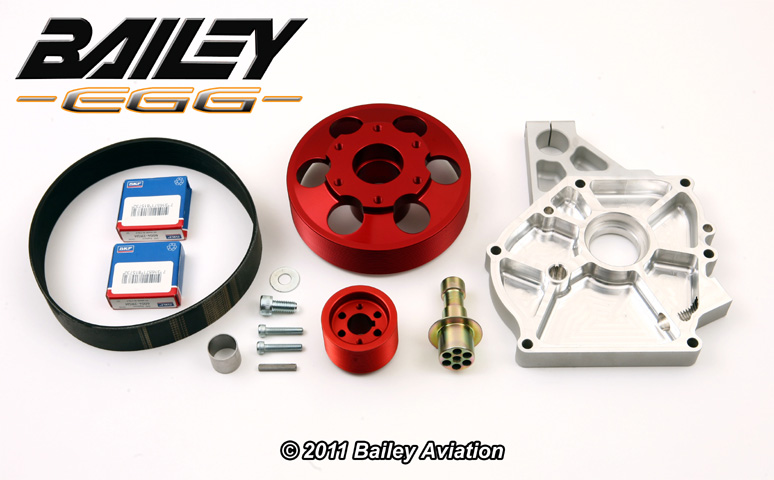

Kit 1 - Reduction:
Replacement front engine cover
Eccentric shaft
Large pulley
Bearings x 2
Bearing spacer
Drive belt
Small pulley

£ No Longer Available

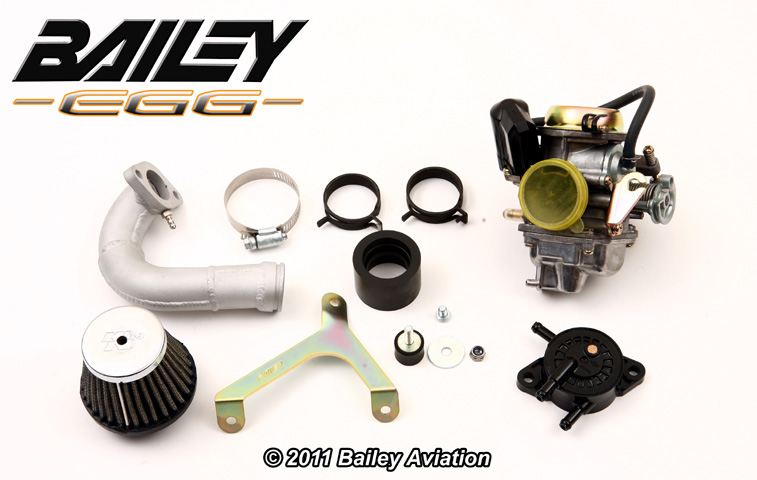

Kit 2 - Carburettor:
24mm CVK carburettor
Inlet manifold
Carburettor connector + clips
Air filter + isolator
Carburettor support bracket
Pulse pump

£ No Longer Available

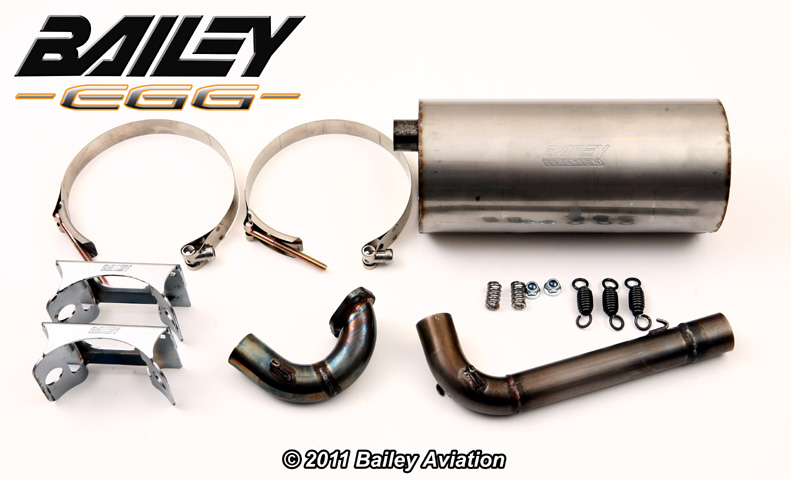

Kit 3 - Exhaust System:
Exhaust mounting brackets x 2
Exhaust silencer
Exhaust downpipe
Exhaust manifold
Exhaust springs x 3
Exhaust clamps x 2

£315.00 Incl VAT

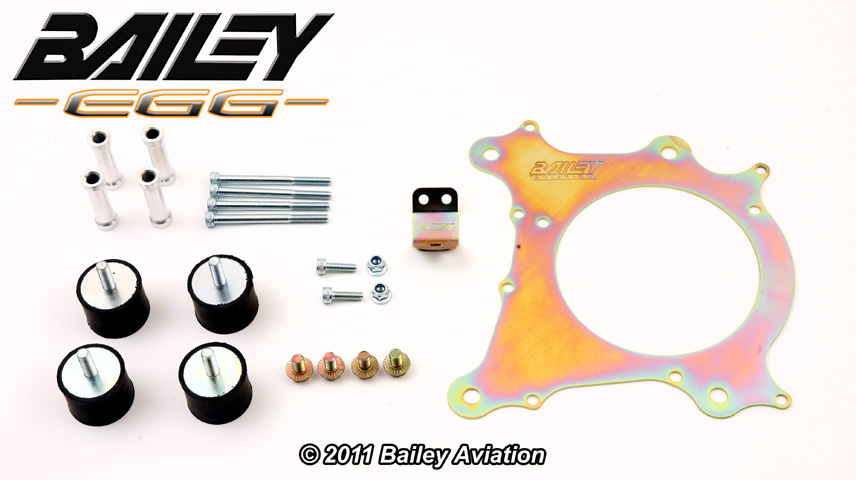

Kit 4 - Engine Mounting:
Mounting plate
Silentblocks x 4
Mounting plate support
Spacers x 6


£99.50 Incl VAT


We also offer some additional accessories to help complete your Bailey EGG installation.

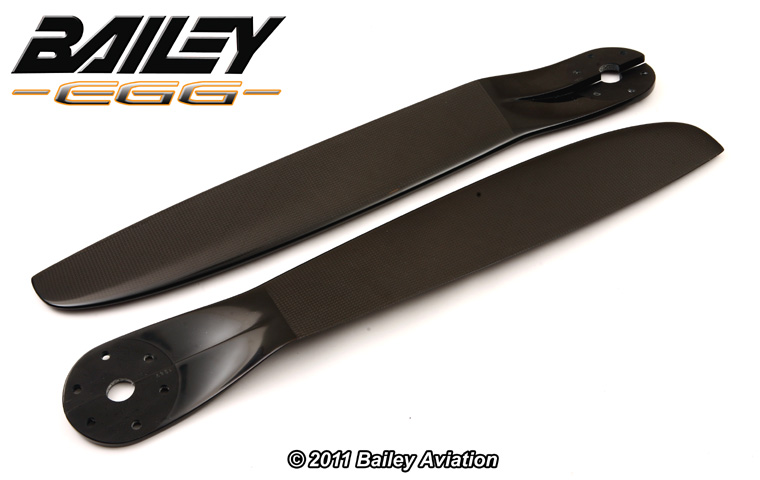

Helix 1.30m Propeller:
2 blade 1.30m Helix Carbon-composite propeller (slot together design)



£300.00 Incl VAT

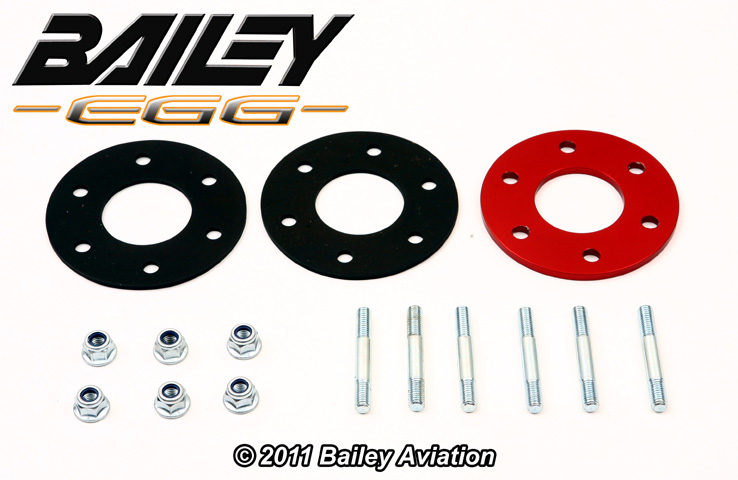

Hardware Kit for Helix Composite Propeller:
Comprises of 6 bright zinc plated prop mounting studs and Nyloc nuts, red anodised alloy front clamp plate and two Neoprene gaskets.


£40.00 Incl VAT

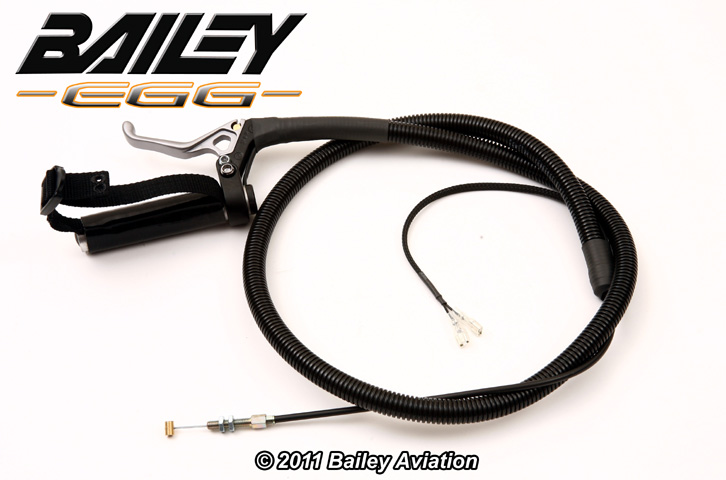

Throttle Assembly:
Complete throttle, with silicone comfort grip, ergonomic throttle lever, adjustable strap, stop button/ wiring and throttle cable, all protected by high quality outer sheathing. Suitable for left or right handed operation.

£89.50 Incl VAT


Please note that the Bailey EGG kits and additional accessories are only available to order directly from Bailey Aviation.

All prices include UK VAT @ 20.0%
